The Future of Grid - Scale Storage

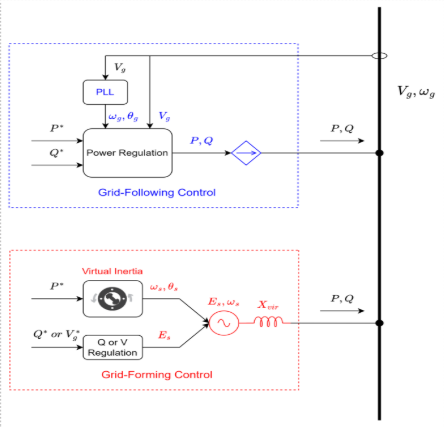

Grid forming projects:

• Should developers want to design grid-forming inverters they will need to engineer their systems differently.

• This means that auxiliary loads and losses will be higher, and economics will need to be re-casted to account for SoC-loss during standby operation and forming operation

• In addition, the following challenges must be navigated:

  • Transformer inrush control

    • POW switching or V/f pre-flux ramp for soft energization

  • Over-voltage issues

    • Handling reactive power absorption

  • Resonance and harmonics

    • Damping network oscillations and ensuring stable short-circuit response

  • Frequency and load pick-up challenges

    • Stabilizing V/f during cold load pickup and staged block loading

  • Operational sequencing

    • Q-droop hierarchy, staged energization, etc. validated via EMT and HIL tests

  • Synchronization issues

    • Smooth ramping, droop control, etc.

  • Ramp rate tuning

    • Staged load pickup and reserve margins
